MPXH6400A, 20 to 400 kPa, Absolute,  Integrated Pressure Sensor

1 General description

The NXP MPXxx6400A series sensor integrates on-chip, bipolar op amp circuitry  and thin film resistor networks to provide a high output signal and temperature  compensation. The small form factor and high reliability of on-chip integration  make this pressure sensor a logical and economical choice for the system  designer. The MPXxx6400A series piezoresistive transducer is a state-of-the-art,  monolithic, signal conditioned, silicon pressure sensor. This sensor combines  advanced micromachining techniques, thin film metallization, and bipolar  semiconductor processing to provide an accurate, high level analog output signal  that is proportional to applied pressure.

2 Features and benefits

• Improved accuracy at high temperature

• Available in super small outline package

• 1.5% maximum error over 0 °C to 85 °C

• Fully calibrated and compensated

• Ideally suited for microprocessor or microcontroller-based systems

• Temperature compensated from -40 °C to +125 °C

• Durable thermoplastic surface mount package

• Package porting and mounting options enable tube attachment for liquefied  natural gas (LPG) or remote sensing applications

3 Applications

• Fuel injected car engines

• Vehicles powered by green gases (for example LPG and CNG)

• Small engines

• Industrial controls

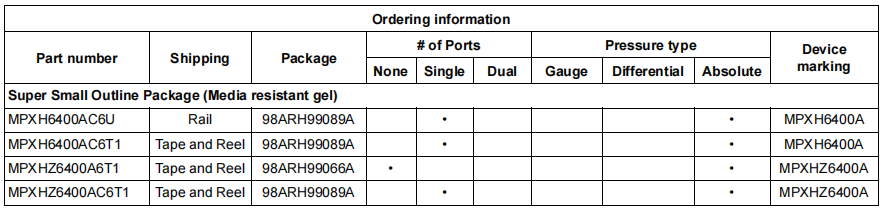

4 Ordering information

Here is the detailed information of the pressure sensor MPX6400AC6U. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
