200 kPa On-Chip Temperature Compensated Silicon Pressure Sensors
1 General description
The MPX2202 devices series are silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on chip. The chip is laser trimmed for precise span and offset calibration and temperature compensation. They are designed for use in applications such as pump/ motor controllers, robotics, level indicators, medical diagnostics, pressure switching, barometers, altimeters, etc.
2 Features and benefits
• Temperature Compensated Over 0C to +85C
• Easy-to-Use Chip Carrier Package Options
• Available in Absolute, Differential and Gauge Configurations
• Ratiometric to Supply Voltage
• Available in Easy-to-Use Tape and Reel
3 Applications
• Pump/Motor Controllers
• Robotics
• Level Indicators
• Medical Diagnostics
• Pressure Switching
• Barometers
• Altimeters

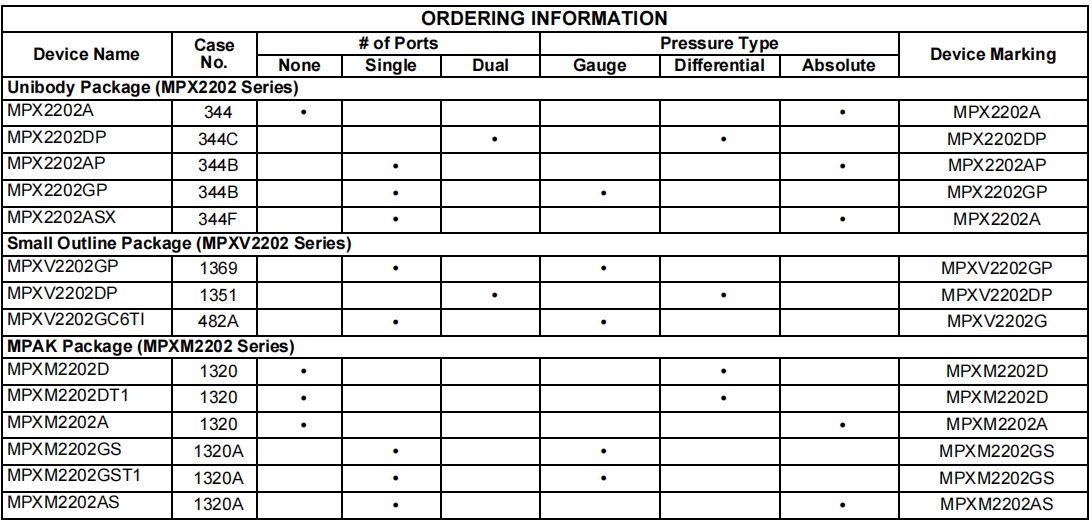

4 Ordering information
Here is the detailed information of the pressure sensor MPX2202GP. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
