Brand：HBM
Type：Single point load cell
Model：PW10AC3-100KG
Special features
− OIML-R60 approval
− Max. capacities: 50 kg ... 300 kg
− Off center load compensated (OIML R76)
− Meets EMC standards (EN 45 501)
− Shielded connection cable
− 6-wire circuit
Optional
− Reduced minimum LC verification interval (vmin) for multi range applications
− Explosion proof versions
− different cable lengths
− Aligned output, suitable for connection in parallel

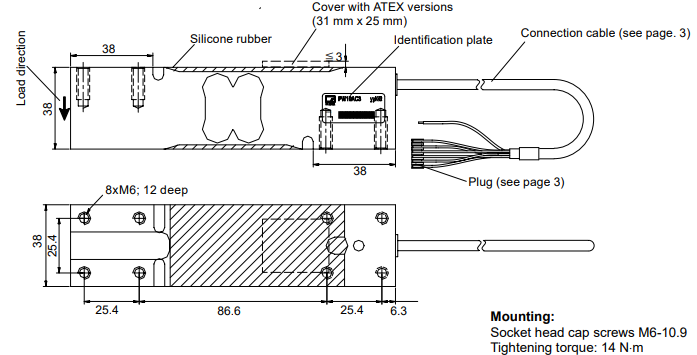

Dimensions (in mm; 1 mm = 0.03937 inches)

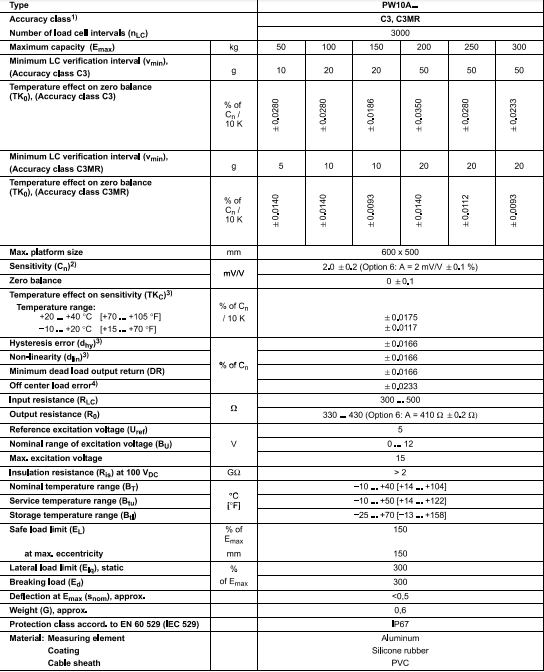

Specifications
Here is the detailed information of the PW10AC3-100KG Load Cell. As a home of imported sensors, Modern Hero Technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
