Brand: E+E
Type: HVAC Humidity and Temperature Sensor
Model: EE160-M1T1A3SBLOSBH50
The EE160 is optimized for cost effective, accurate measurement of relative humidity (RH) and temperature (T) in building automation.
Reliable
Best long-term stability even in polluted or aggressive environment is ensured by the encapsulated measurement electronics inside the probe and E+E proprietary protection of the sensing element.
Versatile
The measured data is available on two voltage or current (2-wire) outputs, or on the RS485 interface with BACnet MS/TP or Modbus RTU protocol. Additionally, the EE160 features a passive T output.
Functional Design
EE160 is available for wall or duct mount. The IP65 / NEMA 4 enclosure minimizes installation costs and provides outstanding protection against contamination and condensation.
Comfortable Configuration and Adjustment
With an optional configuration adapter and the free EE-PCS Product Configuration Software, the user can set the RS485 interface parameters, the output scaling and perform one or two point adjustment for RH and T.
Protective Sensor Coating
The E+E proprietary sensor coating is a hygroscopic layer applied to the HCT01 humidity sensing element. The coating substantially extends sensor life-time and ensures optimal measurement performance in corrosive environment (salts, off-shore applications). Additionally, it improves the long term stability in dusty, dirty or oily applications by preventing stray impedances caused by deposits on the active sensor surface or on the electrical connections.

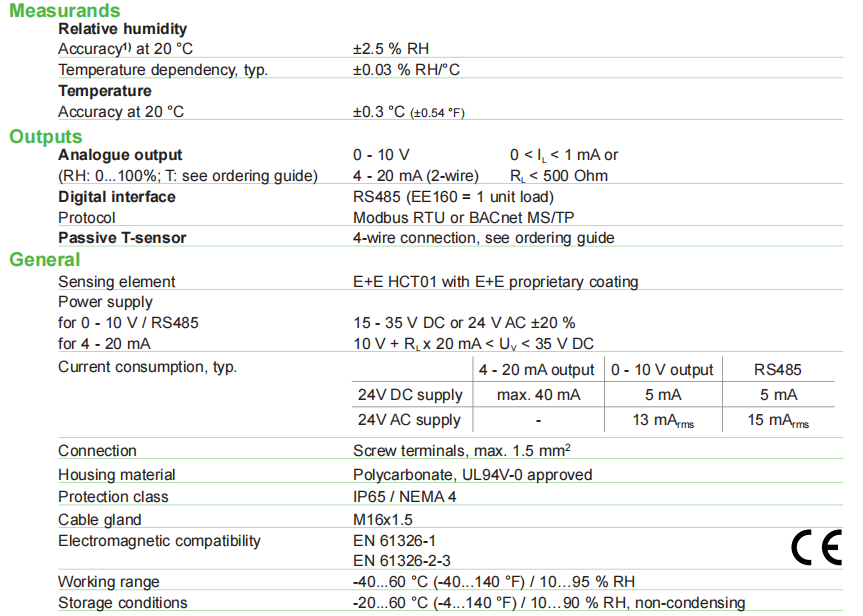

Technical Data
Here is the detailed information of the EE160-M1T1A3SBLOSBH50 Humidity and Temperature Sensor. As a home of imported sensors, Modern Hero Technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
