20 to 250 kPa, Manifold absolute pressure sensor, on-chip signal conditioned, temperature compensated and calibrated

1 General description

The MPX4250A/MPXA4250A Manifold Absolute Pressure (MAP) sensor for engine control is designed to sense absolute air pressure within the intake manifold. This measurement can be used to compute the amount of fuel required for each cylinder. The MPX4250A/MPXA4250A piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, particularly those employing a microcontroller or microprocessor with A/D inputs. This transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high-level analog output signal that is proportional to the applied pressure. The small form factor and high reliability of on-chip integration make the NXP sensor a logical and economical choice for the automotive system engineer.

2 Features and benefits

• 1.5 % maximum error over 0 °C to 85 °C

• Specifically designed for intake manifold absolute pressure sensing in engine control systems

• Patented silicon shear stress strain gauge

• Temperature compensated over –40 °C to +125 °C

• Offers reduction in weight and volume compared to existing hybrid modules

• Durable epoxy unibody element or thermoplastic small outline, surface mount package

• Ideal for non-automotive applications

• Available in three small outline packages and two unibody packages

3 Applications

• Turbo boost engine control

• Ideally suited for microprocessor or microcontroller-based systems

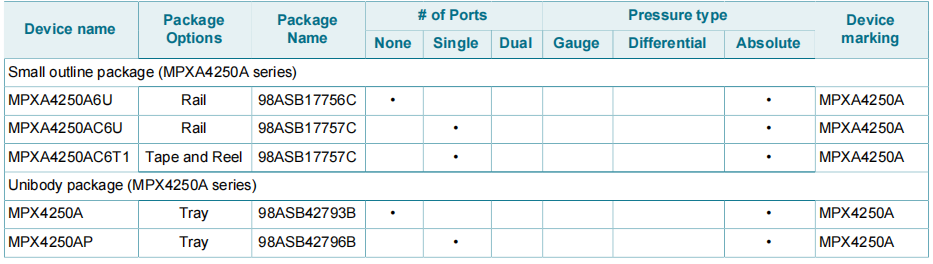

4 Ordering information

Here is the detailed information of the pressure sensor MPX4250AP. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
