0 to 250 kPa, Differential, gauge pressure sensor, on-chip signal conditioned, temperature compensated and calibrated
1 General description
The MPX4250D series piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, particularly those employing a microcontroller or microprocessor with A/D inputs. This transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high-level analog output signal that is proportional to the applied pressure. The small form factor and high reliability of on-chip integration make the NXP sensor a logical and economical choice for the automotive system engineer.
2 Features and benefits
• Differential and gauge applications available
• 1.4 % maximum error over 0 °C to 85 °C
• Patented silicon shear stress strain gauge
• Temperature compensated over –40 °C to +125 °C
• Offers reduction in weight and volume compared to existing hybrid modules
• Durable epoxy unibody element
• Available in two unibody packages
3 Applications
• Ideally suited for microprocessor or microcontroller-based systems

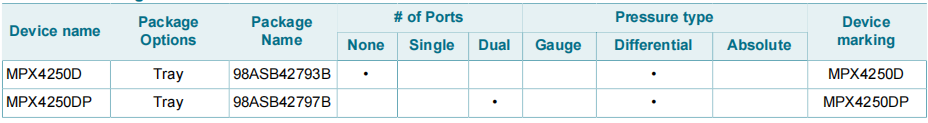

4 Ordering information
Here is the detailed information of the pressure sensor MPX4250DP. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
