Brand: novotechnik
Model: TEX-0100-418-002-101 Displacement Sensor
Type: Linear Displacement Sensor
Compact design and easy to assemble via pivot heads characterize this inexpensive transducer. This transducer is suitable for various industry applications. By the simplicity of the measuring system - passive and absolute - the transducer is largely insensitive to electrical interference. The measuring value remains despite power failure. The electrical connection can be made via a radial plug connector, a radial or axial cable. Transducers with and without restoring spring and mounting clamp, central thread or flange plates see separate data sheets TEX.
• compact dimensions
• protection class IP54
• mountable over back-lash free pivot heads with a large angle of free movement (up to ±12,5°)
• very long life (depending on application) up to 100 million movements
• resolution better than 0.01 mm
• outstanding linearity up to ±0.05 %
• variable mechanical customer interfaces
• cable or connector version available
• heavy-duty version IP67 see data sheet TX2

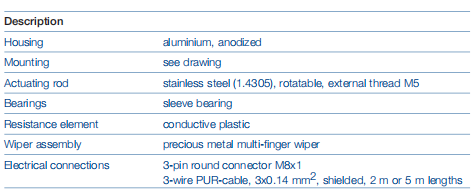

Description

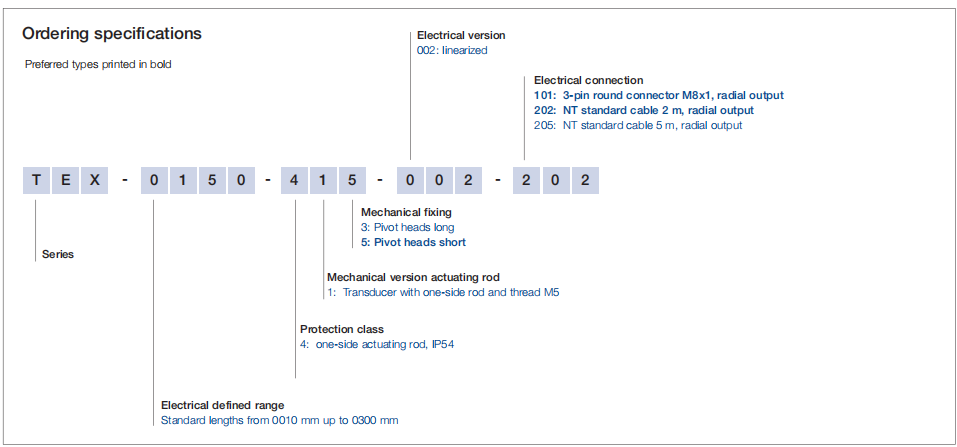

Ordering specifications
Here is the detailed information of the TEX-0100-418-002-101 Displacement Sensor. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
