model：H3F-C3-2t-6T
brand：ZEMIC
• Nickel plated alloy steel IP67 "S" type load cell;
• Tension and compression applications;
• Suitable for hanging, hopper and other weighing devices;
• Also available in imperial capacities and dimensions.
1、SPECIFICATION
Accuracy class | C3 | A5S | B10S | |
Output sensitivity (= FS) | mV/V | 3.0 ± 0.008 | ||
Maximum capacity (Emax) | t | 0.05/0.1/0.25/0.5/0.75/1/1.5/2/2.5/5 | ||
lb | 200/250/300/500/750/1/1.5/2/2.5/3/5/7.5/10/15/20 | |||
Maximum number of load cell intervals (nLC) | 3000 | III5000 Single Pack | IIIL10000 Single Pack | |
Ratio of minimum LC verification interval Y=Emax / Vmin | 10000 | 15000 | 10000 | |
Combined error | %FS | ±0.020 | ||
Minimum dead load | %FS | 0 | ||
Safe overload | %FS | 150 | ||
Ultimate overload | %FS | 300 | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5 ~ 12 (DC) | ||
Excitation maximum | V | 18 (DC) | ||
Input resistance | Ω | 350 ± 3.5 | ||
Output resistance | Ω | 351 ± 2.0 | ||
Insulation resistance | MΩ | ≥ 5000 (50VDC) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Alloy steel | |||
Ingress protection (according to EN 60529) | IP67 | |||
Recommended torque on fixation | N.m | M10: 50 M12:75 M18: 300 | ||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ | II3G Ex nL IIC T4 | |

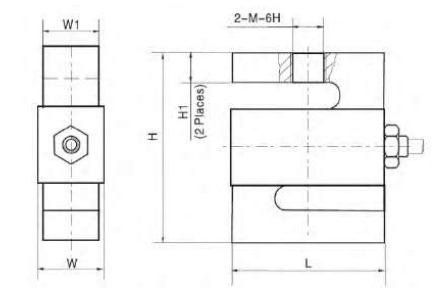

2、DIMENSIONS mm(inch)
Dimension(mm) Capacity | H | L | W1 | W | H 1 | M |
50kg,100kg | 76.2 (3.0) | 50.8 (2.0) | 19 (0.75) | 22.4 (0.88) | 9 (0.35) | M10×1.5 |
250kg~750kg | M12×1.75 | |||||
1.0t,1.5t | 25.4 (1.0) | 28.8 (1.13) | ||||
2.0t~5.0t | 108 (4.25) | 76.2 (3.0) | M18×1.5 | |||
250lb | 76.2 (3.0) | 50.8 (2.0) | 12.7 (0.5) | 16.1 (0.63) |
9 (0.35) | M20×1.5 |
200lb~300lb | 19 (0.75) | 22.4 (0.88) | ||||
500lb~1.5klb | M33×3 | |||||
2klb~3klb | 25.4 (1.0) | 28.6 (1.13) | ||||
5klb~10klb | 108 (4.25) | 76.2 (3.0) | 3/4-16UNF | |||
15klb | 140 (5.51) | 100 (3.94) | 31.8 (1.25) | 35 (1.38) | 16.5 (0.65) | 1-14UNS |
20klb | 177.8 (7.0) | 125.5 (4.94) | 49.3 (1.94) | 54 (2.13) | 21.5 (0.85) | 5/4-12UNF |

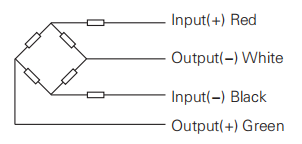

3、WIRING
· Shielded, 4 conductor cable.
· Cable diameter: Φ5mm
· Standard cable length: 6m
· Shield not connected to element.
