Small size, Light weight,
Simple operation,Cost effective
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 10 VDC±0.3VDC |
| Input range | 10 V output at theinput of 0.5 mV/V |
| Sensitivity adjustable range | 2000 times 1/1 ~1/4 times adjustable |
| Output | ±10 V |
| Output Load Resistance | 2 k-ohm or more |
| Zero adjustment range | ±0.25 mV/V adjustableby trimmer *Adjust the tare weight cancellation by mountingthe resister. |
| Non-linearity (Display and voltage output) | 0.02 %F.S. |
| Temperature efficient | Zero point ±1 μV/℃ (Inputconversion) Sensitibity within ±0.01 %F.S./℃ |
| Frequency response range | 1 kHz(-3 dB±1 dB) |
| Operating temp. / humidity range | Temperature -10 ℃~ 50 ℃, Humidity 85 %RH or less (Non condensing) |
| Power supply | 24 VDC 100 mA |

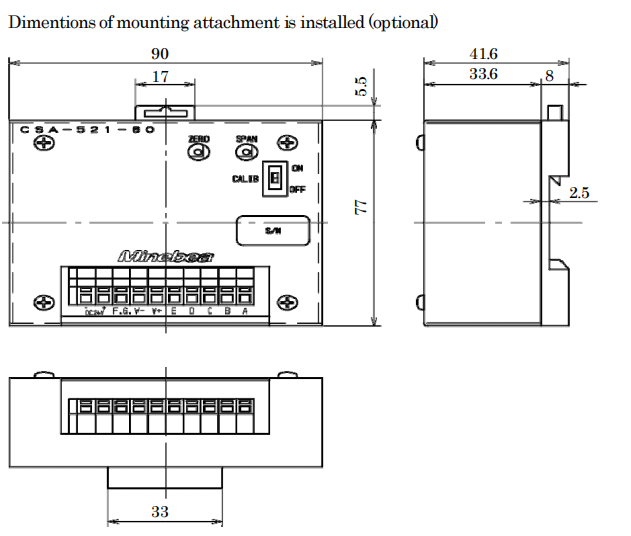

| Outline dimensions (WxHxD) | 80 mm x 70 mm x 20 mm(Excludes protruding parts) |
| Weight | Approx. 100 g |
| Terminal board | 236-110 (WAGO) : CN1 |
