SPECIAL FEATURES
Maximum capacities: 5 kg … 1 t
Load cells and mounting aids made of rust-resistant materials
Legal for trade up to 6000 parts, test report to OIML R60
Approval as per NTEP III M5000 (USA & Canada)
Six-wire configuration Optimized for parallel connection
Options: Explosion protection versions as per ATEX, IECEx and FM (US/CA)
Available with M12x1 male connector as (K-)Z6-P
Optional: Available with flexible (and space-saving) drag chain cable
Available as LCMC measurement chain with smart option (IO-Link), with digital option (CANopen or RS-485), with analog option (4 … 20 mA or 0 … 10 V)

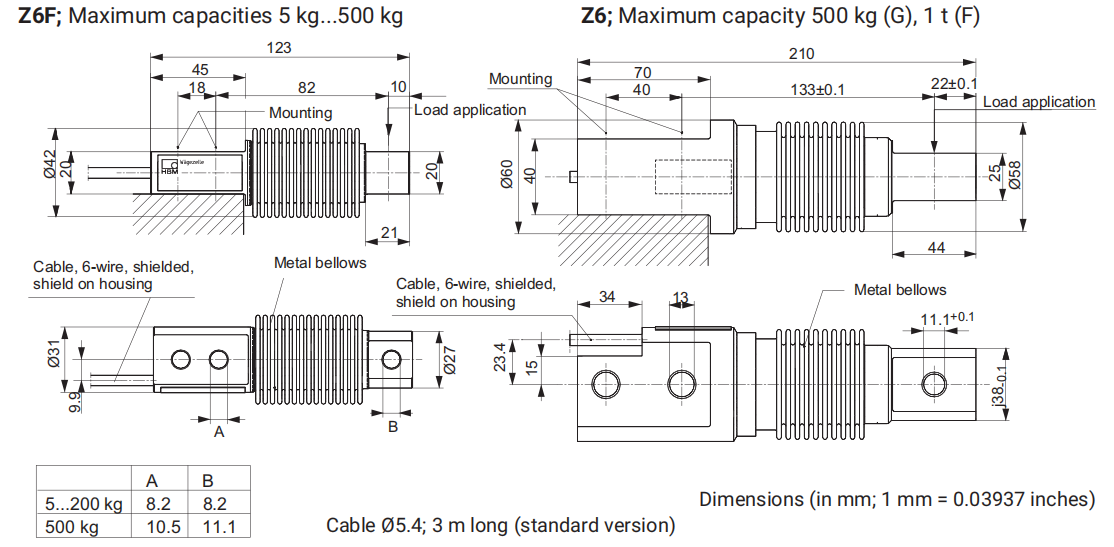

DIMENSIONS
Here is the detailed information of the Z6FD1-5KG Load Cell. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
