Brand: ASAHI
Type: Thermostat| Parameter Category | Details |
|---|---|
| Electrical Rating | Type S: 125 VAC 15A max. (200mA min.); 250 VAC 8A max. (200mA min.) Type K: 30 VDC 1A max. (5 VDC 1mA min.); 120 VAC 125 VA (Pilot Duty) |
| Operating Temperature Range | 0～50℃; 51～100℃; 101～150℃ |
| Temperature Tolerance | 0～50℃: ±4K / ±5K; 51～100℃: ±4K / ±6K; 101～150℃: ±5K / ±7K |
| Differential | 12K; 15K; 20K |
| Circuit Resistance | Type S: 50 mΩ or less Type K: 10 mΩ or less |
| Insulation Resistance | 100 MΩ or more [with a 500 VDC megger] |
| Dielectric Strength | Type S: 1500 VAC / 1 min. Type K: 1200 VAC / 1 min. |
| Maximum Override Temperature | 150℃ |
| Cold Resistance Temperature | -20℃ |
| Switching Durability | 100,000 times or more [at rated load] |
㼣㼕㼚㼓㼟

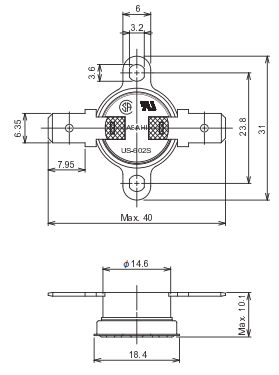

Dimensional drawings
Here is the detailed information of the US-602SXRLIO-TT-ES Thermostat. As a home of imported sensors, Modern Hero Technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
