Load cell U2AD1-2T
Brand：HBM
Type：Load cells made of stainless steel
Model：U2AD1-2T
Special features
- Load cells made of stainless steel
- Max. capacities: 50 kg ... 20 t
- Suitable for scales according to OIML R60 up to 1000 d
- Six wire circuit - Low profile
- For tensile loads
- Meets EMC requirements according to EN 45 501
- Explosion proof version (optional)
Wiring code

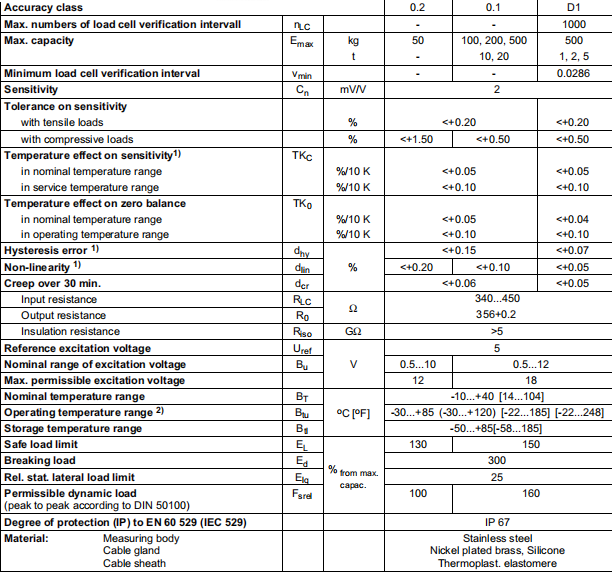

Specifications
Here is the detailed information of the U2AD1-2T Load Cell. As a home of imported sensors, Modern Hero Technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
