Retail and Bench Scales
MT1022 provides the best weighing performance with such a low profile design. This saves cost in the scale design and makes an attractive lowprofile product possible without compromising on performance.
Off-Center Compensation
One load cell can be used to support a weighing platform and, due to the off-center load compensation, the MT1022 will weigh within tolerance regardless of load application point.
Robustness
MT1022 allows 50% static overload without compromising the weighing performance. The passivated aluminum provides good corrosion resistance suitable for many industrial applications.
The MT1022 load cell features:
• OIML R60 C3 approval
• NTEP 5000 III S/M approval
• ATEX Zone 1/2 and 21/22 approvals
• Off-center load compensation (R76)
• 350x350 mm platform size
• IP67 protection class
• Passivated aluminum
• 3–30 kg capacity range
The MT1022 is the ideal solution for retail scales, small platform scales and packaging and process weighing. Due to the low profile the integration into any system is easy. The low capacity range (3 – 30kg) allows the construction of highly accurate low-capacity scales.

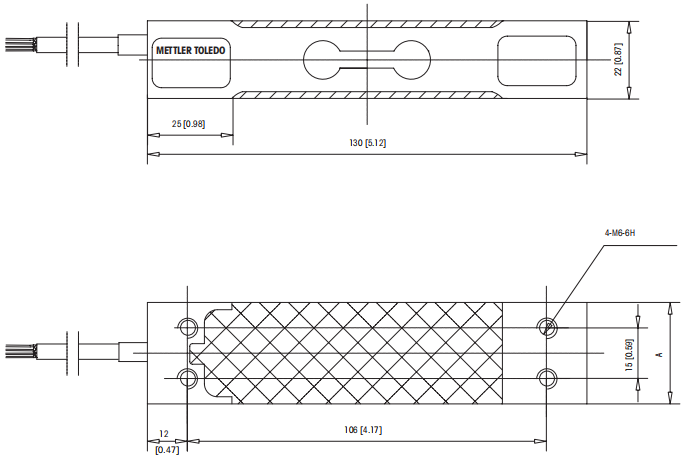

MT1022 Load Cell Dimensional Drawings mm [inch]
