MSP-400-025-B-4-W-X Sensor

Product Name: MSP-400-025-B-4-W-X Sensor

Brand: TE/MEAS

Type: Pressure Transducer

Model: MSP-400-025-B-4-W-X


DESCRIPTION

The MSP series pressure transducers set a new price-performance standard for low cost, high volume, commercial and industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids or gases. The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/ 4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no o-rings, welds or organics exposed to the pressure media. The durability is excellent. Measurement Specialties proprietary Microfused technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages, fused with high temperature glass to a stainless steel diaphragm. This approach achieves media compatibility simply and  elegantly providing an exceptionally stable sensor without the p-n junctions of conventional micromachined sensors. This product is geared to the OEM customer using medium to high  volumes. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Center stands ready to provide a semi-custom design where the volume and application warrants.


FEATURES

 One Piece Stainless Steel Construction

 Ranges up to 10kpsi or 700Bar

 mV or Amplified Outputs

 Excellent Accuracy

 Wide Operating Temperature Range


APPLICATIONS

Pumps and Compressors

Hydraulic/Pneumatic Systems

Off Road

Energy and Water Management

Pressure Instrumentation

Refrigeration Equipment

Agriculture Equipment

Train Braking Systems

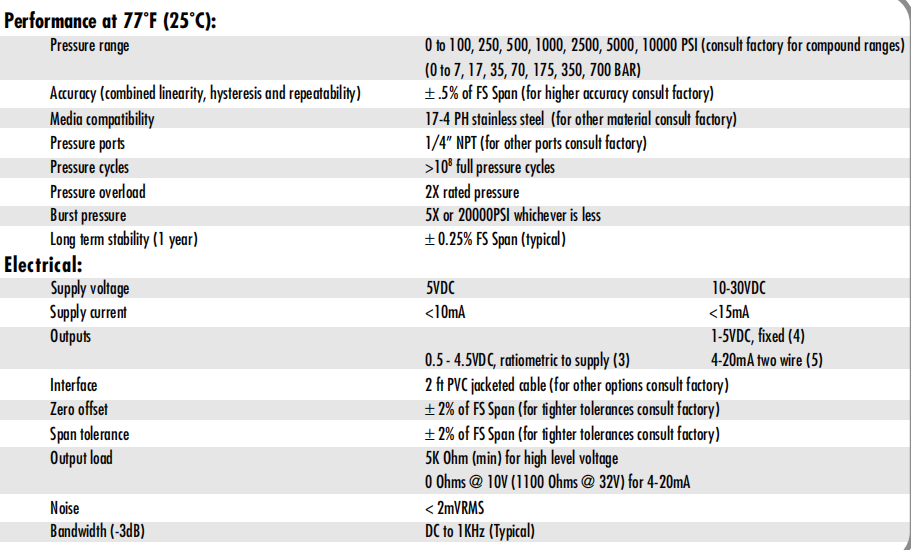

PERFORMANCE SPECIFICATIONS



Here is the detailed information of the MSP-400-025-B-4-W-X Sensor. As a home of imported sensors, Modern Hero Technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
