Product Name: MSP-300-025-B-5-N-1 Sensor

DESCRIPTION

The MSP300 pressure transducer from the Microfused line of MEAS sets a new price performance standard  for low cost, high volume, commercial and industrial applications. This series is suitable for measurement of liquid or  gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The transducer pressure cavity is machined from a solid piece of 17-4 PH or 316L stainless steel. The  standard version includes a 1/4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no O-rings,  welds or organics exposed to the pressure media. The durability is excellent.  MEAS’ proprietary Microfused technology, derived from demanding aerospace applications, employs  micromachined silicon piezoresistive strain gages fused with high temperature glass to a stainless steel diaphragm.  This approach achieves media compatibility simply and elegantly while providing an exceptionally stable sensor  without the PN junctions of conventional micromachined sensors.  This product is geared towards OEM customers in small to high volumes. Standard configurations are  suitable for many applications. Please contact factory for your customization needs.

FEATURES

 One Piece Stainless Steel Construction

 Ranges up to 10kpsi or 700Bar

 mV or Amplified Outputs

 Excellent Accuracy

 Wide Operating Temperature Range

APPLICATIONS

 Pumps and Compressors

 Hydraulic/Pneumatic Systems

 Automotive Test Systems

 Energy and Water Management

 Agriculture – Sprayers and Dusters

 Refrigeration – Freon and Ammonia Based

 General Pressure Measurements

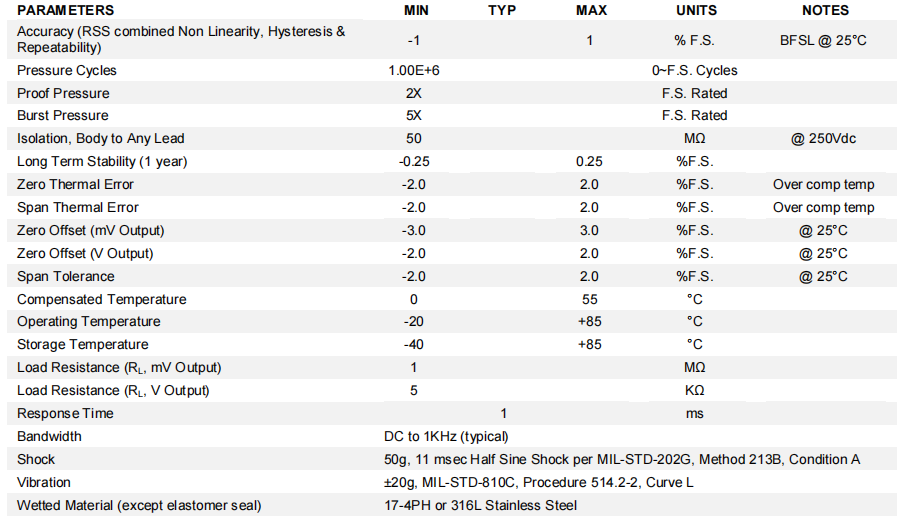

PERFORMANCE SPECIFICATIONS

Here is the detailed information of the MSP-300-025-B-5-N-1 Sensor. As a home of imported sensors, Modern Hero Technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
