100 kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors
1 General description
The MPX2100 series devices silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration an temperature compensation.
2 Features and benefits
• Temperature Compensated Over 0°C to +85°C
• Available in Absolute, Differential and Gauge Configurations
• Easy to Use Chip Carrier Package Options
• Ratiometric to Supply Voltage
• ±0.25% Linearity (MPX2100D Series)
3 Applications
• Pump/Motor Controllers
• Robotics
• Level Indicators
• Medical Diagnostics
• Pressure Switching
• Barometers

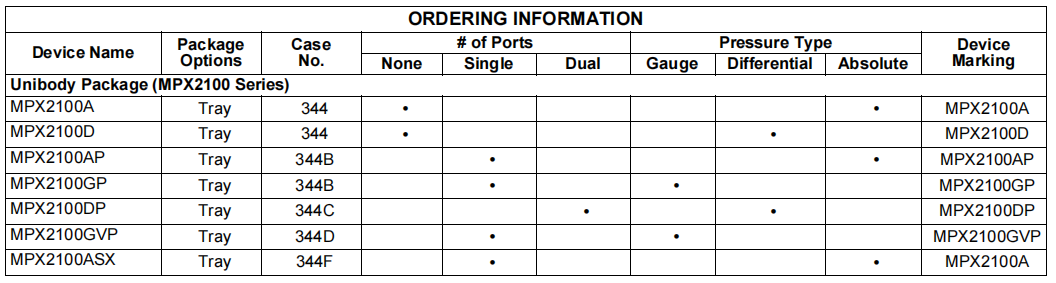

4 Ordering information
Here is the detailed information of the pressure sensor MPX2100DP. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
