10 kPa Temperature Compensated Pressure Sensors
1 General description
The MPX2010 series device is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration and temperature compensation.
2 Features and benefits
• Ratiometric to Supply Voltage
• Differential and Gauge Options
• Temperature Compensated over 0 °C to 85 °C
• Easy-to-Use Chip Carrier Package Options
3 Applications
• Air Movement Control
• Respiratory Diagnostics
• Controllers
• Pressure Switching

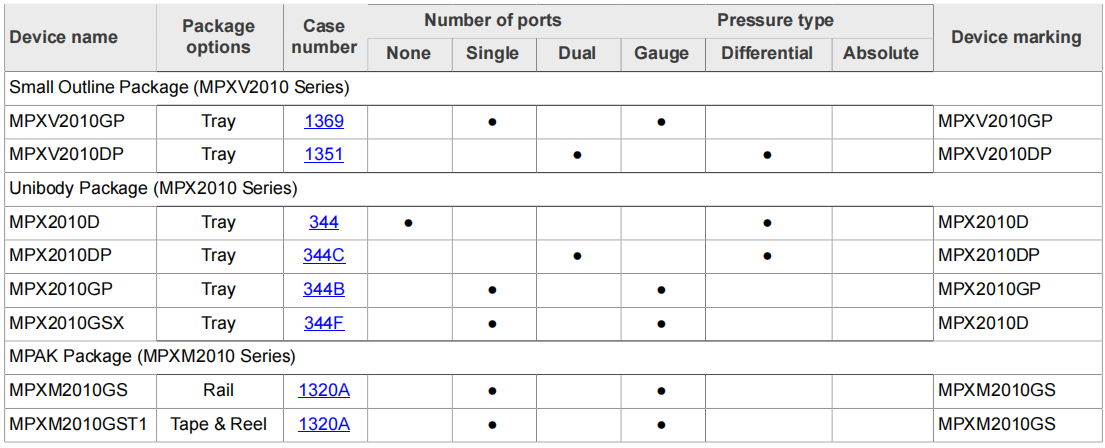

4 Ordering information
Here is the detailed information of the pressure sensor MPX10D. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
