J3-50KGF Load Cell

The J3-50KGF load cell from South Korea's Curiotec (CURIOSITY TECHNOLOGY COMPANY) is a high-performance weighing and force-measuring component.

1. Basic Characteristics

  • Model: J3-50KGF
  • Brand: Curiotec (South Korea)
  • Type: Single-point load cell
  • Capacity: 50KG


2. Features

  • Low cost
  • Off-center compensated
  • Protection class IP65
  • Material: Anodized aluminum
  • Cable: Braided shield 4-wire round cable with PVC jacket
  • Mounting:
    • Socket-head cap screw
    • M6×1.0 (Grade 10.9)
    • Tightening torque: 14Nm
  • Maximum Platform Size: 300×300 mm
  • Ordering Information:
    J3-xxx "L" (Capacity in kgf)


3. Technical Specifications

Parameter CategoryParameterUnitValue Range
Max. Capacity
kgf50, 75, 100, 150, 200 kgf
Rated Output
mV/V2.0 ± 0.2
Zero Balance
mV/V0 ± 0.05
Combined Error
%RO0.05
Repeatability
%RO0.02
Creep (30 minutes)
%RO0.03
Temperature Effect onZero Value%RO/10℃0.05

Output Value%RO/10℃0.05
Excitation VoltageRecommendedV10

MaximumV15
ResistanceInput ResistanceΩ1180 ± 100

Output ResistanceΩ1000 ± 10

Insulation Resistance>2,000 (at 50V DC)
Compensated Temperature Range
°C-10 ~ +40
Operating Temperature Range
°C-20 ~ +80

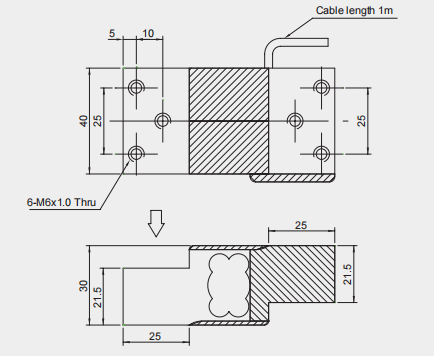

4. Dimension Diagram



5. Maintenance

Regular inspection and maintenance of the sensor are crucial to ensuring its long-term stable operation. It is necessary to keep the sensor and its surrounding environment clean to prevent pollutants such as dust and moisture from affecting the sensor. Meanwhile, regularly check whether the connecting cables and circuits of the sensor are in normal condition, and whether the sensor is damaged or worn.
