model：DHM9BD10-C3-30T-16B7-1C
brand：ZEMIC
• High accuracy,strong stability
• Good consistency, strong interchangeability, easy installation and maintenance
• High reliability, strong anti-interference ability
• Self-identification function for fault diagnosis
• Long transmission distance, high communication speed, significant anti-cheating effect
1、SPECIFICATION
Capacity | t | 10,20,25,30,40,50 |
Accurary class | OIML R60 C3 | |
Maximum number of load cell intervals | nmax | 3000 |
Minimum number of load cell intervals | vmin | Emax/7500 |
Rated output | counts | 1000000 |
Combined error | %FS | ≤ ±0.020 |
Measurement rate | Hz | 10 |
Creep | (%FS/30min) | ≤ ±0.016 |
Temperature effect on sensitivity | (%FS/10℃ ) | ≤ ±0.011 |
Temperature efftect on zero | (%FS/10℃ ) | ≤ ±0.019 |
Excitation voltage | V DC | 5.4~15 |
Communication interface | RS 485/4 | |
Number of bus addresses | Maxmum 32 | |
Communication baud rate | Bps | 19200 |
Maximum communication distance | m | 1000 |
Compensated temperature | (℃ ) | -10~+40 |
Operating temperature | (℃ ) | -20~+60 |
Safe overload | (%FS) | 120 |
Ultimate overload | (%FS) | 150 |
Level of protection | IP68 | |
Cable length | m | 16 |
Cable specification | Ductor shielded cable, ф6.2 |

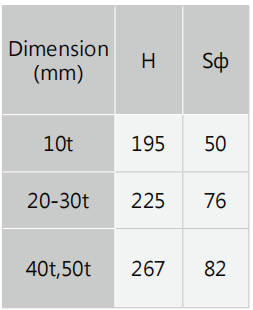

2、DIMENSIONS mm(inch)
三、WIRING
Red: V+ Black: GND Yellow: Rx+ Brown: Rx- Blue: Tx+ White:Tx- Transparent
