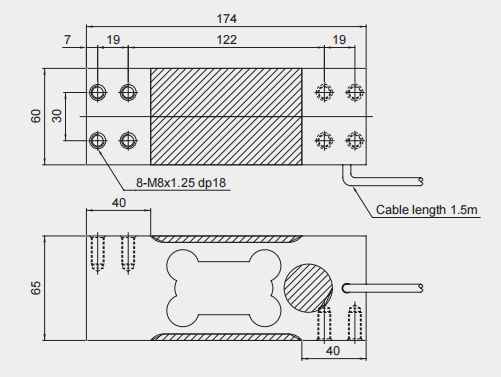

CBCD-250L Load Cell
| Parameter Category | Parameter | Unit | Value Range |
|---|---|---|---|
| Max. Capacity | kgf | 30, 50, 100, 150, 250, 300, 500 kgf | |
| Rated Output | mV/V | 2.0 ± 0.2 | |
| Zero Balance | mV/V | 0 ± 0.1 | |
| Combined Error | %RO | 0.03 | |
| Repeatability | %RO | 0.01 | |
| Creep (30 minutes) | %RO | 0.03 | |
| Temperature Effect on | Zero Value | %RO/10℃ | 0.028 |
| Output Value | %RO/10℃ | 0.014 | |
| Excitation Voltage | Recommended | V | 10 |
| Maximum | V | 15 | |
| Resistance | Input Resistance | Ω | 400 ± 20 |
| Output Resistance | Ω | 350 ± 3.5 | |
| Insulation Resistance | MΩ | >2,000 (at 50V DC) | |
| Compensated Temperature Range | °C | -10 ~ +40 | |
| Operating Temperature Range | °C | -20 ~ +80 |
Regular inspection and maintenance of the sensor are crucial to ensuring its long-term stable operation. It is necessary to keep the sensor and its surrounding environment clean to prevent pollutants such as dust and moisture from affecting the sensor. Meanwhile, regularly check whether the connecting cables and circuits of the sensor are in normal condition, and whether the sensor is damaged or worn.
Here is the detailed information of the CBCD-250L Load Cell. As a home of imported sensors, Modern Hero Technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
